Three failures cause roughly 90% of retraction problems: dirt packed inside the housing, webbing wound past the spool's 10-foot capacity, and a fatigued constant-force spring. Most jammed retractable ratchet straps can be diagnosed in five minutes with a brush, clean water, and a screwdriver — replacement is only necessary when the spring or pawl is actually broken.
Key Takeaways
- Trail dust packed into the housing is the number one reason a retractable ratchet strap stops retracting.
- Webbing wound crooked or past 10 feet jams the spool — re-crank it straight before blaming the spring.
- A slow, weak rewind points to spring fatigue; replace the assembly instead of forcing it.
- Rinse with clean water, shade-dry, and store straps retracted to keep grit out.
- Commercial haulers must re-check the load within the first 50 miles under 49 CFR 392.9(b).
Why Does Dirt Stop Retractable Ratchet Straps From Retracting?
A retractable tie-down strap rewinds on an internal constant-force spring, and the clearance between spool and housing wall is under 1/8 inch. UTV trails throw sand, clay dust, and dried mud straight at that gap until the spool stalls — the rewind stops at the same point every trip, often with a gritty grind.
The fix costs nothing: rinse the housing with low-pressure clean water, air-dry it in the shade, then cycle the release lever 10 to 12 times. Never use a pressure washer — it drives grit past the internal seals — and never spray oil inside: oil turns trail dust into abrasive paste.
Can Overwinding Past 10 Feet Jam the Spool?
Yes, and it is the second most common cause. The spool in a 2-inch by 10-foot model holds exactly that much webbing in flat, even wraps. Wind past capacity, or let the webbing stack crooked, and the wrap diameter grows until it binds against the housing wall.
Length discipline prevents it: measure from anchor point to tie-down point, add about 2 feet of routing slack, and buy the length that matches — extra length is slack, not security. To recover a jam, extend fully, remove twists, and rewind straight under light tension.
Is It the Pawl, the Spring, or a Stuck Release Lever?
Match your symptom before touching a screwdriver:
| Symptom | Likely cause | Fix |
|---|---|---|
| Rewind stops at the same spot every time | Grit packed at one point on the spool | Rinse, shade-dry, cycle the release lever 10–12 times |
| Strap will not pull out at all | Cross-wound webbing or a jammed pawl | Press the release lever fully, work the webbing free |
| Rewind is slow and weak | Constant-force spring fatigue | Replace the assembly — do not force it |
| No rewind tension at all | Broken spring cassette | Replace the assembly |
Safety note: once the pawl disengages, the spring pulls the webbing back fast — keep fingers clear of the housing mouth.
How Do You Fix a Retractable Ratchet Strap Step by Step?
- Extend the strap to its full 10 feet and lock the ratchet handle.
- Inspect the webbing for cuts, frayed yarn, or a glazed patch. Wherever a strap crosses an abrasive edge, FMCSA 49 CFR 393.104(f)(4) requires edge protection on commercial vehicles — the same physics applies to your UTV trailer.
- Rinse the housing with low-pressure clean water and stand it upright to shade-dry.
- If the pawl is stuck, press the release lever fully and work the webbing until it frees up.
- Rewind under light hand tension so the wraps stack flat, fingers away from the housing mouth.
When Should You Replace Instead of Repair?
Every Autofonder retractable tie down strap is built to the WSTDA T-1 industry standard, which uses a 3:1 design factor: a 4,400 lb break-strength assembly is rated at 1,466 lb working load limit. That rating is only valid on intact webbing — a cut, abraded yarn bundles, or a missing stitch row voids it.
Replace the assembly if the webbing is cut or abraded, stitching is damaged, the housing is cracked, or the rewind stays weak after cleaning. Never open the spring cassette — a pre-tensioned constant-force spring causes genuine hand injuries. A replacement 2" x 10' retractable ratchet strap costs far less than an ER visit; compare every width in the ratchet strap collection.
Which Retractable Ratchet Strap Spec Fits a Side-by-Side?
Match the strap to the cargo weight, not to the biggest number on the shelf:
| Question | 1in x 12ft soft loop (USRT019) | 2in x 10ft 2-pack (USRT022) | 2in x 6ft transom (USRT023) |
|---|---|---|---|
| Break strength? | 1,500 lb | 4,400 lb | 4,400 lb |
| WLL at 3:1? | 500 lb | 1,466 lb | 1,466 lb |
| Best carrier? | ATVs, mowers, light loads | Side-by-sides, truck beds, midweight cargo | Boat sterns and transoms |
| Hook style? | Soft loops (no paint scratches) | Snap hooks | Snap hooks |
| Price? | $79.99 (4-pack) | $69.99 (2-pack) | $69.99 (2-pack) |

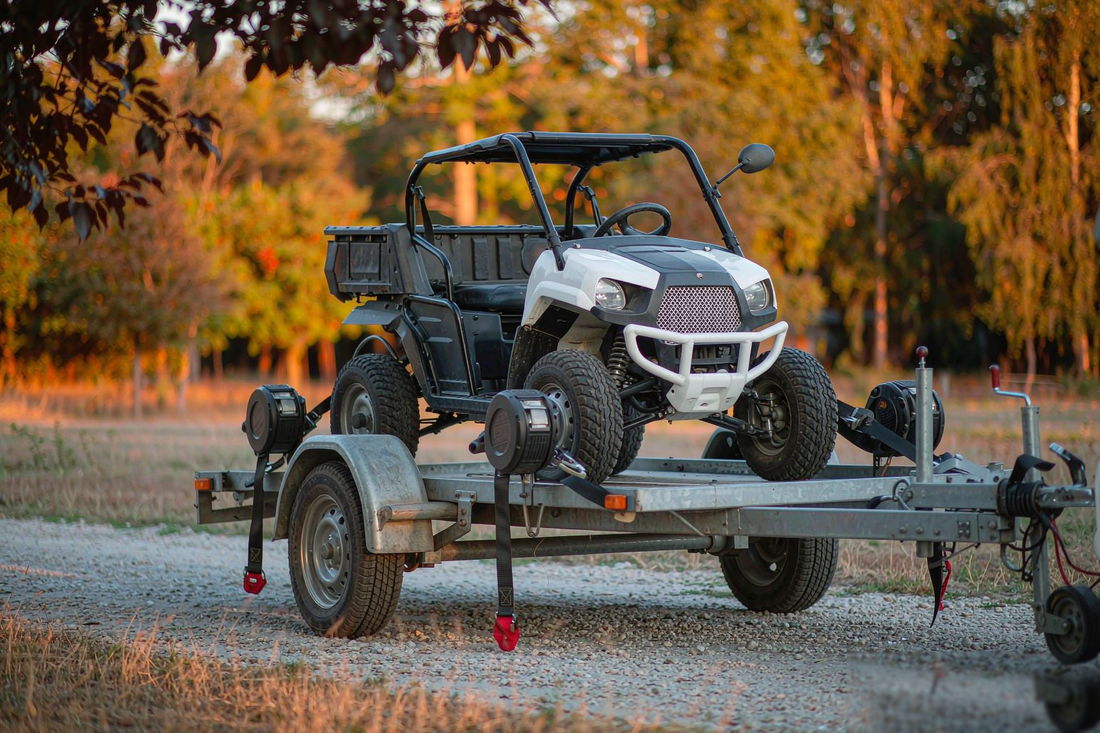

The load math for a typical 1,700 lb side-by-side: under FMCSA 49 CFR 393.106(d), aggregate working load limit must be at least one-half the cargo weight, and a tiedown routed over the cargo back to a same-side anchor contributes only half its WLL. Two USRT022 straps over the tires to same-side anchors contribute 733 lb each — 1,466 lb aggregate — enough for any UTV up to 2,932 lb. Those figures bind commercial carriers under 49 CFR Part 393; for private towing they are the smartest benchmark available.
When Should You Not Use a Retractable Ratchet Strap?
Honest limits, because retractable designs are not universal:
- Fixed length. You cannot extend or lasso the strap — if the anchor points sit farther apart than the usable length, it simply will not reach.
- Lower WLL per width. A standard 2-inch ratchet strap generally carries a higher working load limit, because the housing and spool constrain the hardware.
- Sandy, corrosive environments. Beach launches and road salt accelerate grit jams and spring corrosion; standard ratchets that open fully are easier to flush.
- Commercial flatbed duty. Machinery over 10,000 lb falls under FMCSA 49 CFR 393.130, requiring a minimum of four tiedowns. Consumer retractable straps are not a substitute — commercial flatbed hauls call for standard 2-inch or 4-inch ratchet straps or winch straps, verified against 393.106(d).
Related Reading Before You Haul
Related reading: how many retractable ratchet straps a kayak needs covers load-count logic, which retractable tie down straps fit a boat trailer transom breaks down short-strap routing, and strap stains on truck beds and hulls explains which webbing never transfers dye. Smaller machines pair well with the 1" x 12' soft-loop USRT019 four-pack.
Frequently Asked Questions
Will a retractable ratchet strap fail suddenly while I'm driving?
Almost never without warning. Failure shows up first as frayed yarn, cut webbing, slow rewind, or a pawl that slips under hand pressure. Inspect before every trip and again within the first 50 miles — the same rhythm FMCSA 392.9(b) requires commercially, then re-check every 3 hours or 150 miles.
Can I tow my UTV at highway speed with retractable ratchet straps?
Yes, if the math works. Two 2-inch retractable ratchet straps rated at 1,466 lb WLL each secure a side-by-side up to 2,932 lb when routed over the tires. Quality assemblies follow WSTDA T-1; re-tension at your first fuel stop because webbing settles.
Why does my strap only retract halfway and then stop?
Grit or a crooked webbing stack is stalling the spool at one point. Extend fully, remove twists, rinse, shade-dry, and rewind under light tension. If it still stops at the same point after cleaning, the spring is fatiguing — replace the assembly.
Can I fix a broken spring inside a retractable ratchet strap myself?
No. The constant-force spring is pre-tensioned inside a sealed cassette and can cause serious hand injuries if opened. The correct repair is replacing the whole assembly, which keeps the WLL rating intact.
Do retractable ratchet straps lose strength when wet?
Polyester webbing keeps essentially full strength when wet. The real risks are mechanical: water carries grit into the housing and corrodes steel hooks. Rinse, shade-dry, and the rating holds.
Bottom Line: Repair, Replace, or Upgrade?
If your retractable ratchet straps stop retracting after a UTV weekend, clean and re-crank first — about 90% of jams are dirt or bad wraps, not broken parts. Replace any strap with cut webbing, damaged stitching, or a weak rewind, and run the Autofonder 2" x 10' Retractable Ratchet Tie Down Straps 2-pack (4,400 lb break, 1,466 lb WLL, $69.99) for side-by-side duty. Lighter ATVs and mowers do better with the 1" x 12' soft-loop USRT019 4-pack at $79.99. Keep them clean and dry, and they will keep your UTV exactly where you strapped it.
