Federal rules require a minimum of two tie-downs for a car, light truck, or van weighing 10,000 lb or less — one restraining the front and one restraining the rear — and a minimum of four tie-downs for anything heavier. But the tie-down count is only one of two tests. Under 49 CFR 393.106(d), the combined working load limit of your straps must also equal at least half the vehicle's weight. A 4,000 lb car therefore needs 2,000 lb of aggregate working load limit, and a single pair of 2-inch ratchet straps rated at 3,333 lb working load limit each clears that number with room to spare.
Key Takeaways
- Minimum legal count: 2 tie-downs for vehicles at or under 10,000 lb, 4 tie-downs for vehicles over 10,000 lb.
- Both tests must pass — tie-down count and aggregate working load limit of at least 50% of vehicle weight.
- Aggregate WLL uses the working load limit, never the break strength printed on the packaging.
- Professional auto haulers use four tie-downs even on 3,000 lb cars, because two straps meet the count but let a vehicle pivot on its suspension.
What Is the Legal Minimum Number of Tie-Downs for a Vehicle?
For automobiles, light trucks, and vans that individually weigh 10,000 lb or less, 49 CFR 393.128(b)(1) is specific: the vehicle must be restrained at both the front and the rear against lateral, forward, rearward, and vertical movement using a minimum of two tie-downs. The same section states that tie-downs fitted over or around wheels must provide restraint in all three directions, and that synthetic webbing does not need edge protection where it contacts a tire.
Vehicles heavier than 10,000 lb move to a stricter rule. Under 49 CFR 393.130(c), heavy vehicles, equipment, and machinery with wheels or tracks must be restrained in all four directions using a minimum of four tie-downs, each attached as close as practicable to the front and rear of the machine.
That 10,000 lb line is the single most useful number to remember. It separates a passenger-car job from a heavy-equipment job, and it changes both the count of straps and the rating of the straps you reach for.
If you are new to wheel-based securement, our guide to car tie down equipment covers the hardware side in more detail.
How Do You Calculate the Second Test — Aggregate Working Load Limit?
The tie-down count and the strength requirement are independent. Passing one does not excuse you from the other, and the strength test is where most loads fail on paper.
49 CFR 393.106(d) requires that the aggregate working load limit of the securement system be at least one-half the weight of the article being secured. Aggregate WLL is the sum of the working load limits of every tie-down in the system — and there is a detail that catches people out: for a strap that runs from an anchor point on the trailer, over or around the cargo, and back to another anchor point on the trailer, you only count half of its working load limit, because the tension is shared across two legs of webbing.
Two formulas cover almost every trailer load:
| What you are securing | How aggregate WLL is counted |
|---|---|
| Strap from trailer anchor to an attachment point on the vehicle | Full working load limit |
| Strap from trailer anchor, around the vehicle, back to another trailer anchor | Half the working load limit |
| Required minimum | 50% of the vehicle's weight |
A 6,000 lb pickup on a flatbed therefore needs 3,000 lb of aggregate working load limit. Four 2-inch straps at 3,333 lb WLL each, run straight from trailer anchor to axle strap, deliver 13,332 lb — more than four times the requirement. The same four straps run as looped straps around the tires would count as only half each, or 6,666 lb total. That is still legal for a 6,000 lb truck, but the margin is roughly half what it looks like.
For the full regulatory text, the FMCSA cargo securement rules page is the authoritative source, and it is the page inspectors work from.
How Many Straps for Common Vehicle Weights?
This table assumes straight anchor-to-vehicle straps, four points of contact, and the general 50% minimum. Every row passes both the count test and the strength test.
| Vehicle | Typical weight | Minimum tie-downs (law) | Recommended tie-downs | Aggregate WLL needed | Working load available |
|---|---|---|---|---|---|
| Compact car | 2,800 lb | 2 | 4 | 1,400 lb | 4 x 3,333 lb = 13,332 lb |
| Midsize SUV | 4,200 lb | 2 | 4 | 2,100 lb | 13,332 lb |
| Half-ton pickup | 5,500 lb | 2 | 4 | 2,750 lb | 13,332 lb |
| Three-quarter-ton truck | 7,500 lb | 2 | 4 | 3,750 lb | 13,332 lb |
| One-ton truck / van | 9,800 lb | 2 | 4 | 4,900 lb | 13,332 lb |
| Skid steer | 11,000 lb | 4 | 4 | 5,500 lb | 16,200 lb (4-inch winch straps) |
Note the last row: once you cross 10,000 lb, the count jumps to four, and 2-inch webbing becomes a tight fit. That is why the industry moves to winch straps in 4-inch width for equipment at this weight.
Why Do Professional Auto Haulers Use Four Tie-Downs Instead of Two?
Because two tie-downs satisfy the letter of the count rule but not the physics.
A vehicle sitting on a trailer rests on four points — its own suspension and tires. Two straps, one forward and one rearward, hold the chassis down but leave the body free to rotate about the axis between the two attachment points. Under hard cornering, that rotation shows up as lateral walk: the tires creep sideways on the deck, and the straps progressively lose tension.
Four tie-downs solve this by triangulating. Each wheel or frame corner is anchored fore-and-aft, so lateral movement in any direction is resisted by at least one strap under tension. This is also why CVSA inspectors treat the rear attachment point as non-negotiable — the CVSA out-of-service criteria list a missing rear tie-down as a securement defect, and roadside data backs that up. Cargo securement produced 1,724 out-of-service violations during CVSA's 2026 International Roadcheck, about 12.4% of all vehicle out-of-service findings, making it the fourth-largest vehicle violation category.
The practical rule that has emerged in the trade: count the wheels, not the axles. Four wheels, four tie-downs.
Which Straps Meet the Numbers?
The equipment question is simpler than the math, because working load limit is printed on the assembly.
| Autofonder product | Size | Working load limit | Break strength |
|---|---|---|---|
| 2" x 27' flat hook ratchet straps | 2 in x 27 ft | 3,333 lb each | 10,000 lb |
| 2" x 36" axle straps with D-rings | 2 in x 36 in | 3,333 lb each | 10,000 lb |
| Autohauler car tie-down kit | 2 in x 10 ft, 4 straps + rubber blocks | 3,333 lb each | 10,000 lb |
| 4" x 30' winch straps | 4 in x 30 ft | 5,400 lb each | 16,200 lb |
That 3,333 lb figure is the one to put into your calculation. The 10,000 lb number is break strength — the load at which the webbing or hardware fails outright — and it is exactly three times the working load limit. A 3:1 safety factor is mandatory for tie-down assemblies, and it is the reason the regulation is written around working load limit rather than breaking strength.
Axle straps matter here because they let you anchor to the suspension rather than compressing the body. Wrapping webbing directly over a painted panel is where most damage complaints come from, and it also risks the strap slipping off a body edge under vibration. The 2" x 36" axle straps with D-rings give you a soft attachment point that the ratchet end clips into.
How Do You Keep the Count Legal After 50 Miles?
The count you left the yard with is not the count you arrive with, because straps stretch and hardware seats.
49 CFR 392.9(b) requires a securement inspection within the first 50 miles of a trip, then again at whichever comes first: a change of duty status, three hours of driving, or 150 miles. New polyester webbing relaxes measurably in the first hour of highway use; ratchet pawls settle into their first tooth; axle straps rotate slightly as the suspension compresses on the first real bump.
The rules also state that a damaged tie-down counts as zero. 49 CFR 393.104 prohibits knots in webbing and any component with a cut, weld crack, or deformation — and critically, a cut strap does not contribute to your aggregate working load limit. It is not a partial credit situation. If one of four straps is damaged, your aggregate WLL drops by 25%, and a load that passed on paper at 13,332 lb may fall under the 50% threshold.
Wet webbing introduces a second problem. Nylon stretches when wet; polyester, which Autofonder uses across the range, does not absorb water the same way and holds its length far more consistently in rain. That is one reason polyester is the standard webbing for vehicle transport, and one reason our straps print the working load limit and the break strength as separate figures rather than a single headline number — our guide to reading tie-down strap ratings and tags walks through every marking on the label.
Frequently Asked Questions
Can you use two tie-downs and still be legal?
Yes, for a car, light truck, or van weighing 10,000 lb or less. 49 CFR 393.128(b)(1) sets the minimum at two tie-downs, one restraining the front and one restraining the rear, as long as the combined working load limit reaches at least 50% of the vehicle weight. Two 2-inch straps at 3,333 lb working load limit each give you 6,666 lb of aggregate capacity, which covers any vehicle up to 13,332 lb on the strength test. In practice, four points of contact are used because two straps cannot stop the body from rotating under cornering load.
How many straps do you need for a 2,000 lb car?
Two tie-downs meet the legal minimum, and four are recommended. The strength test asks for 1,000 lb of aggregate working load limit for a 2,000 lb car, which one pair of 1.5-inch ratchet straps at 1,000 lb working load limit each already satisfies. Four tie-downs are still the better choice, because a light car has proportionally softer suspension and moves further laterally on the deck when only two straps are holding it.
Do you count a strap that loops around the tire as full working load limit?
No. When a tie-down runs from an anchor point on the trailer, over or around the cargo, and back to another anchor point on the trailer, only half of its working load limit counts toward the total. A looped strap distributes its tension across two legs, so its effective holding force against movement in any one direction is halved. Four looped 3,333 lb straps therefore contribute 6,666 lb of aggregate working load limit, not 13,332 lb.
Is 10,000 lb the working load limit on a 2-inch ratchet strap?
No — 10,000 lb is the break strength. A 2-inch polyester ratchet strap rated at 10,000 lb break strength carries a 3,333 lb working load limit, because tie-down assemblies use a 3:1 safety factor. Always run your loading calculation on the working load limit. Break strength describes the point of failure, not the load the strap can safely hold, and it must never be entered into an aggregate working load limit sum.

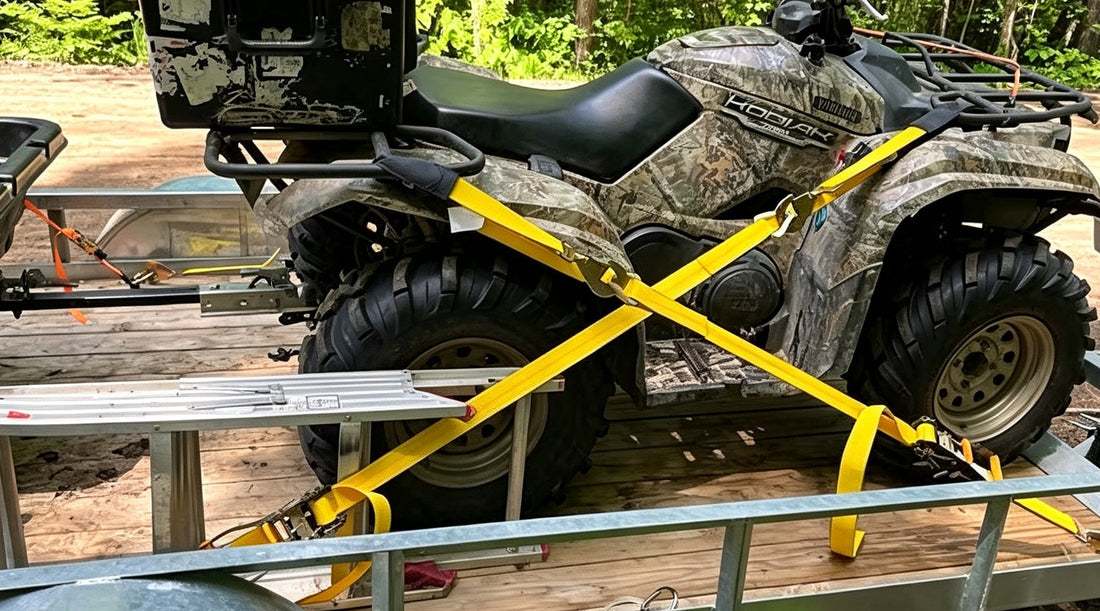

How many tie-downs does a UTV or side-by-side need?
A UTV under 10,000 lb falls under the same two-tie-down minimum as a car, and four tie-downs are recommended. Typical side-by-sides run 1,200 to 2,500 lb, so the strength test asks for only 600 to 1,250 lb of aggregate working load limit. The complication is suspension travel: off-road suspensions are long and soft, so straps lose tension as the machine rocks. Use four tie-downs at the wheels or frame corners and re-check tension within the first 50 miles.
Bottom Line
Two tie-downs are the legal minimum for a vehicle at or under 10,000 lb, four are required above that line, and four are what you should use regardless. Then run the strength test separately: add up the working load limit of every strap, halve the value of any strap that loops around the vehicle, and confirm the total clears 50% of the vehicle's weight.
If you want a single setup that clears the numbers on almost anything under 10,000 lb, the 2" x 27' flat hook ratchet straps paired with 2" x 36" axle straps give you four points of contact at 13,332 lb of aggregate working load limit. Add the accessories you need to keep the setup serviceable — strap winders, stake pocket D-rings, and edge protection — and the count stays correct trip after trip.
For the inspection habits that keep this legal at the roadside, see our breakdown of the most common ratchet strap mistakes and our long-distance prep guide, best practices for long-distance vehicle transport.
